Agreement and balance

Source: vignettes/articles/metrics-agreement.Rmd
metrics-agreement.Rmd

These combine several cells of the confusion matrix into one number that does not collapse when the classes are imbalanced. The first six are in the default set; the last two are asked for by name.

library(precrec)
library(ggplot2)

points <- evalmod(
  scores = P10N10$scores, labels = P10N10$labels,
  mode = "basic"
)

Balanced accuracy and F-score

Metric Formula Range
balanced_accuracy (sensitivity + specificity) / 2 0 to 1
fscore harmonic mean of precision and recall 0 to 1

Balanced accuracy is accuracy with both classes weighted equally, so the majority class cannot carry it on its own. fscore is the F-beta score and defaults to F1; evalmod(beta = 2) counts recall twice as heavily as precision, beta = 0.5 half as heavily.

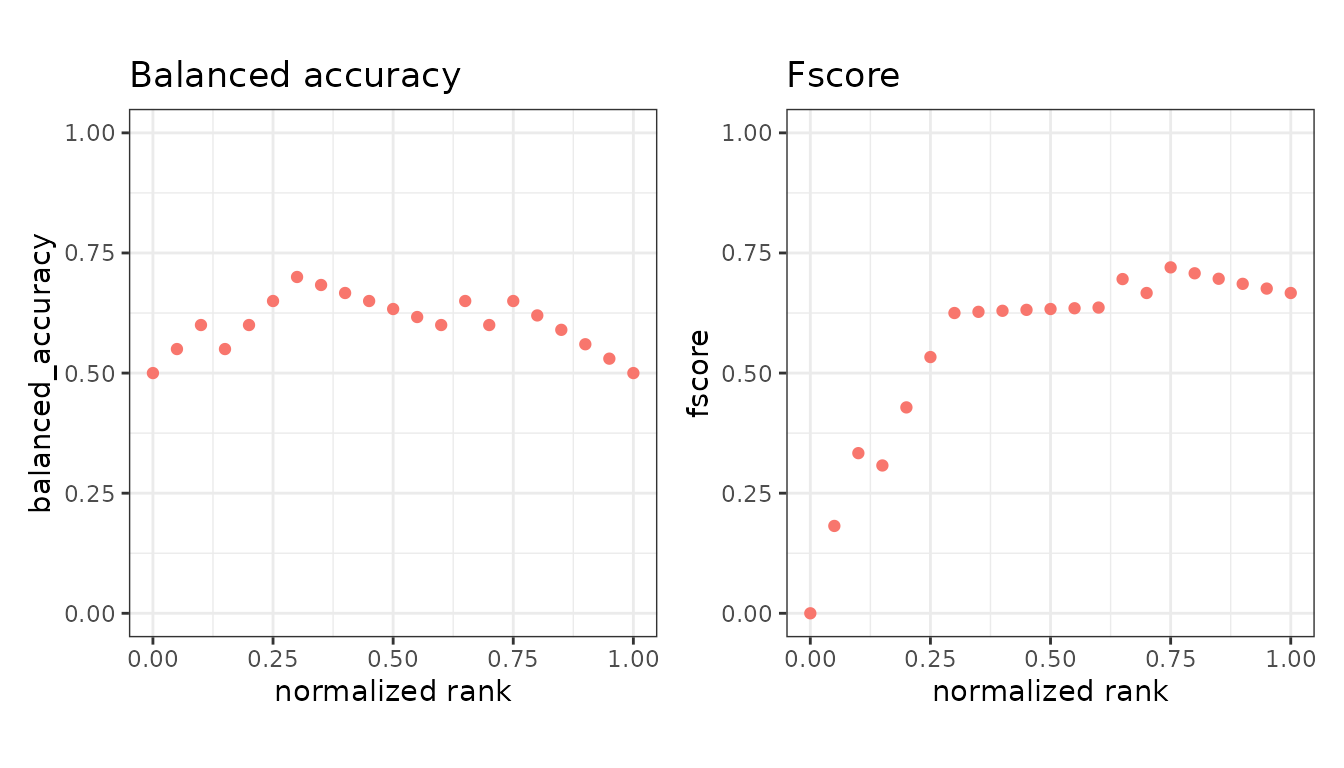

autoplot(points, c("balanced_accuracy", "fscore"))

Correlation-like metrics

Metric Formula Range
mcc correlation of prediction and truth -1 to 1
kappa agreement above chance -1 to 1

Matthews correlation coefficient uses all four cells, so it is high only when the classifier does well on both classes. Cohen’s kappa compares observed agreement against what two raters with these margins would reach by chance. Both can go negative, meaning worse than chance, which is why their plots are drawn on a -1 to 1 axis.

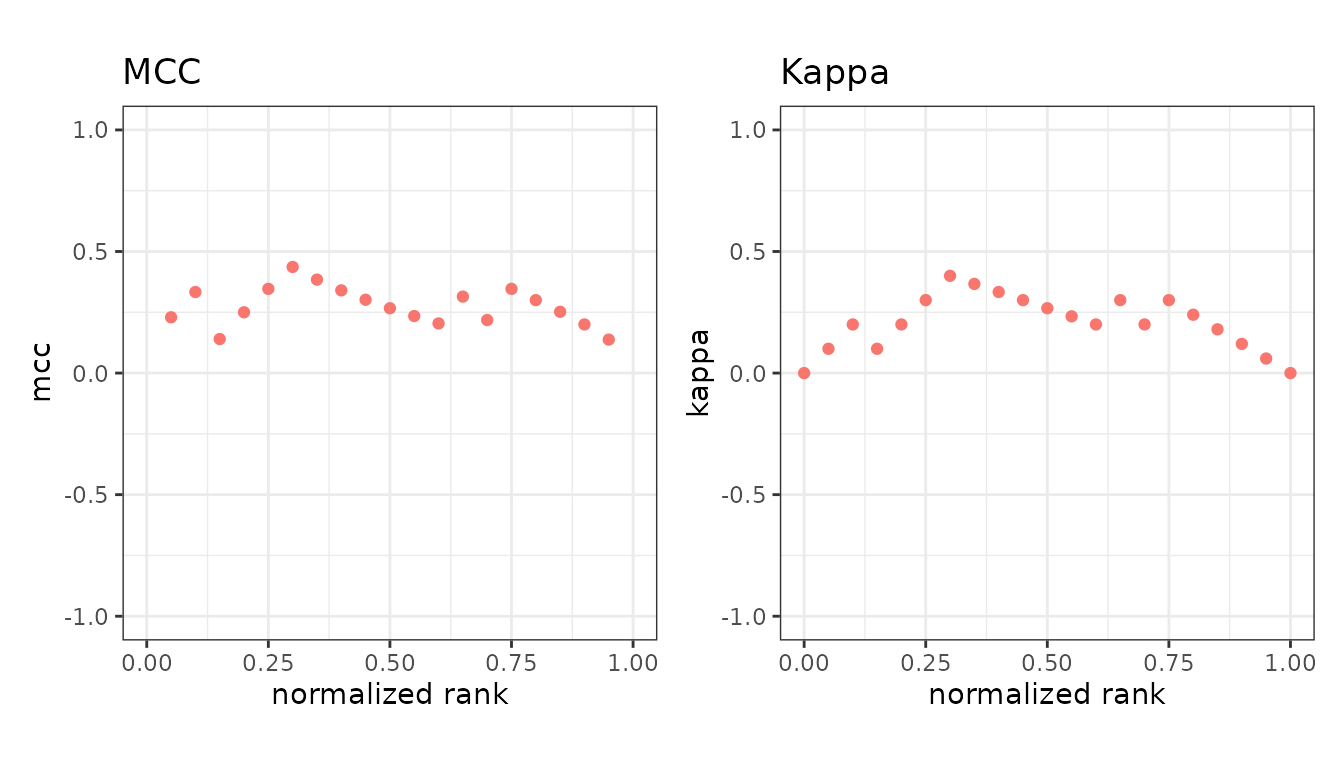

autoplot(points, c("mcc", "kappa"))

Informedness and markedness

Metric Formula Range
informedness sensitivity + specificity - 1 -1 to 1
markedness precision + NPV - 1 -1 to 1

Informedness, also called Youden’s J, is how much better than guessing the classifier is over the actual classes; markedness is the same idea over the predicted classes. Their geometric mean is the MCC.

Skill scores

Metric Formula Range
roc_dist distance to the perfect point in ROC space 0 to sqrt(2)
sedi symmetric extremal dependence index -1 to 1

Not in the default set, so name them in metrics =.

skill <- evalmod(
  scores = P10N10$scores, labels = P10N10$labels,
  mode = "basic", metrics = c("roc_dist", "sedi")
)

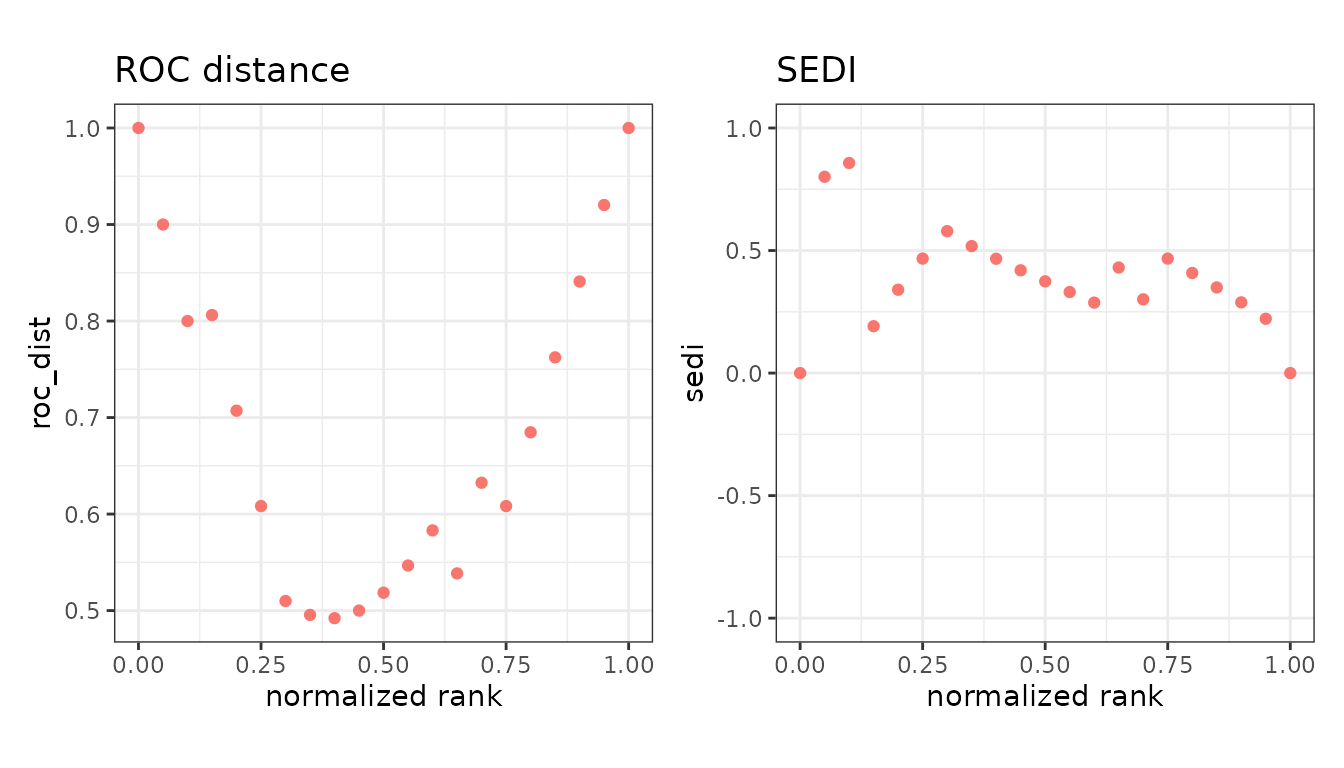

autoplot(skill, c("roc_dist", "sedi"))

roc_dist is the straight-line distance from (1 - specificity, sensitivity) to the top-left corner where both are 1 - the only metric here that is better when smaller, and the only one whose maximum is sqrt(2). Minimizing it is a standard way to choose an operating point off a ROC curve.

sedi comes from forecast verification, where the event is often rare, and is built not to drift towards a fixed value as the positive class gets rarer - the failure mode that makes several other skill scores useless for rare events. It is 0 for chance and 1 for perfect.

Both are undefined at the ends of the ranking, where every prediction is one class, but stay finite: sedi’s four logarithms are clamped away from 0 and 1.

Which to report

For a single number on imbalanced data, mcc is the safest here - no blind spot in any cell. fscore ignores the true negatives entirely, usually deliberate but worth knowing. For choosing an operating point rather than scoring one, roc_dist is the more direct answer. None of them replaces a curve: each describes one cutoff, and the cutoff is a choice you have to justify. See AUC and other curve summaries.

mcc is NA where a row or column of the table is empty, and kappa where chance agreement is exactly 1 - the top and bottom of the ranking.
