Basic metric plots

mode = "basic" plots evaluation metrics against the normalized rank of the scores - that is, against how far down the ranked list the cutoff sits.

library(precrec)
library(ggplot2)

points <- evalmod(scores = P10N10$scores, labels = P10N10$labels,
  mode = "basic"
)

Pick the panels

Name the metrics you want. Each becomes a panel.

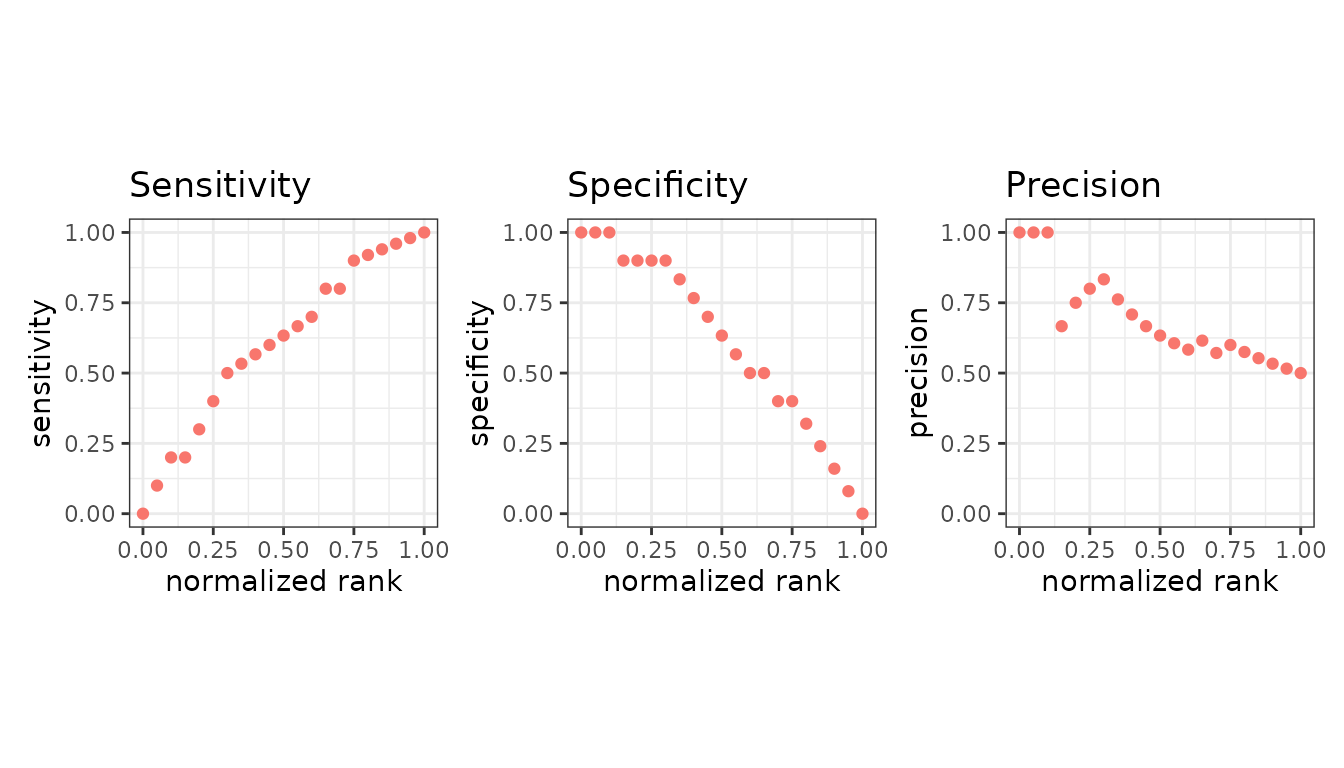

autoplot(points, c("sensitivity", "specificity", "precision"))

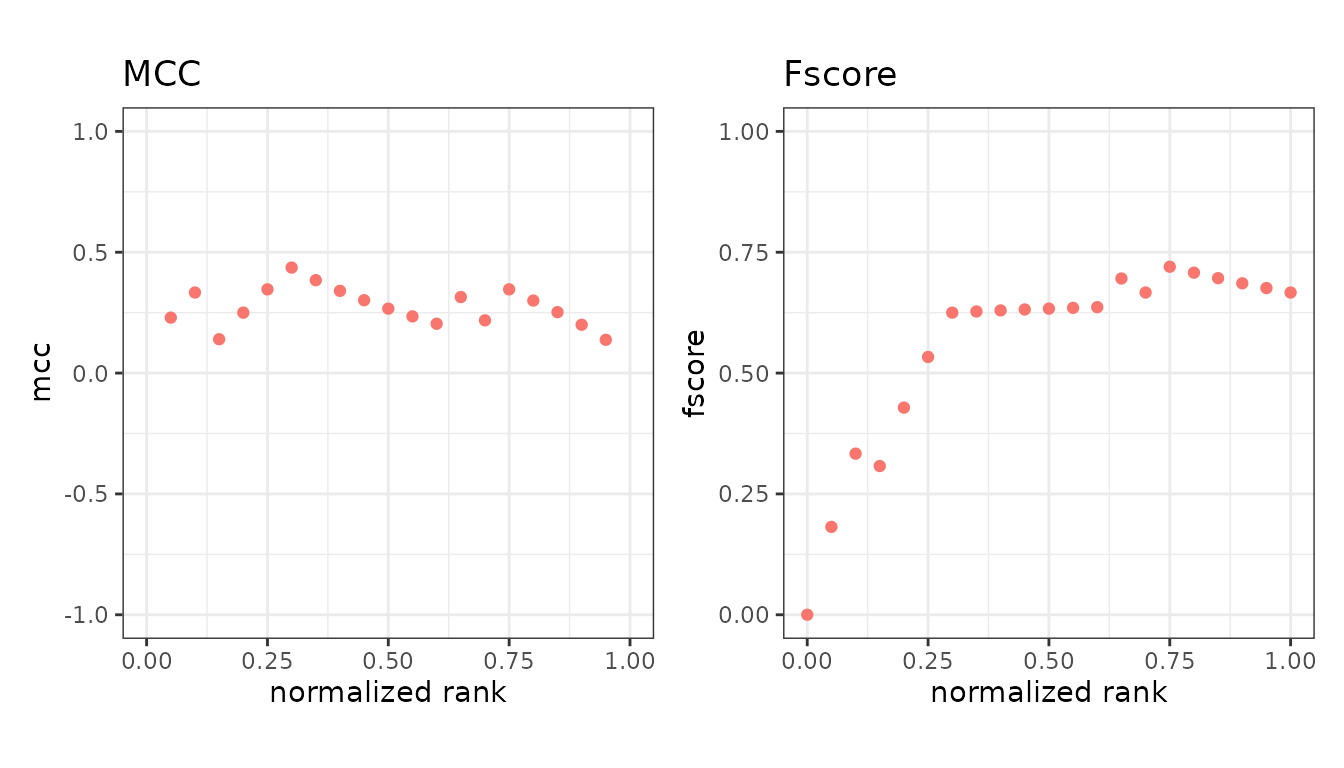

autoplot(points, c("mcc", "fscore"))

Called with no metrics, you get all fourteen default panels at once, which is useful for a first look and too dense for a report.

Reading the x axis

The x axis runs from 0 to 1 and is the fraction of the dataset above the cutoff. At x = 0 nothing is predicted positive; at x = 1 everything is. So the left edge is the strictest cutoff and the right edge the most permissive.

This is what makes the panels comparable across datasets of different sizes.

The value plotted is the normalized rank. There is one cutoff above every instance and one below all of them, so n instances give n + 1 points, and the cutoff with k instances above it sits at k / n.

n <- 5 # five instances, so six cutoffs

(0:n) / n
#> [1] 0.0 0.2 0.4 0.6 0.8 1.0

Counting those points from 1 rather than from 0, the same thing is (rank - 1) / (points - 1). Ranks count down from the best score, so the highest-scoring instance is rank 1 and sits at the left edge - the opposite direction to R’s rank(), which counts up from the lowest score.

ties_method in evalmod() sets the rank that tied instances receive, but the cutoffs still step one instance at a time, so a run of tied scores spreads across consecutive x values rather than sharing one.

Tied scores

A cutoff that falls inside a run of tied scores separates instances that share a score, so no threshold produces it. precrec has always filled those cutoffs by spreading the true and false positives of the run evenly over them, which is the interpolation the ROC and precision-recall curves need. For the basic metrics, which are not interpolated, it can read strangely.

The clearest case is a classifier that is exactly right and says so with a single bit, so that every instance is tied with every other of its class:

set.seed(42)
perfect <- rbinom(100, 1, 0.5)

autoplot(
  evalmod(scores = perfect, labels = perfect, mode = "basic"),
  c("specificity", "sensitivity")
)

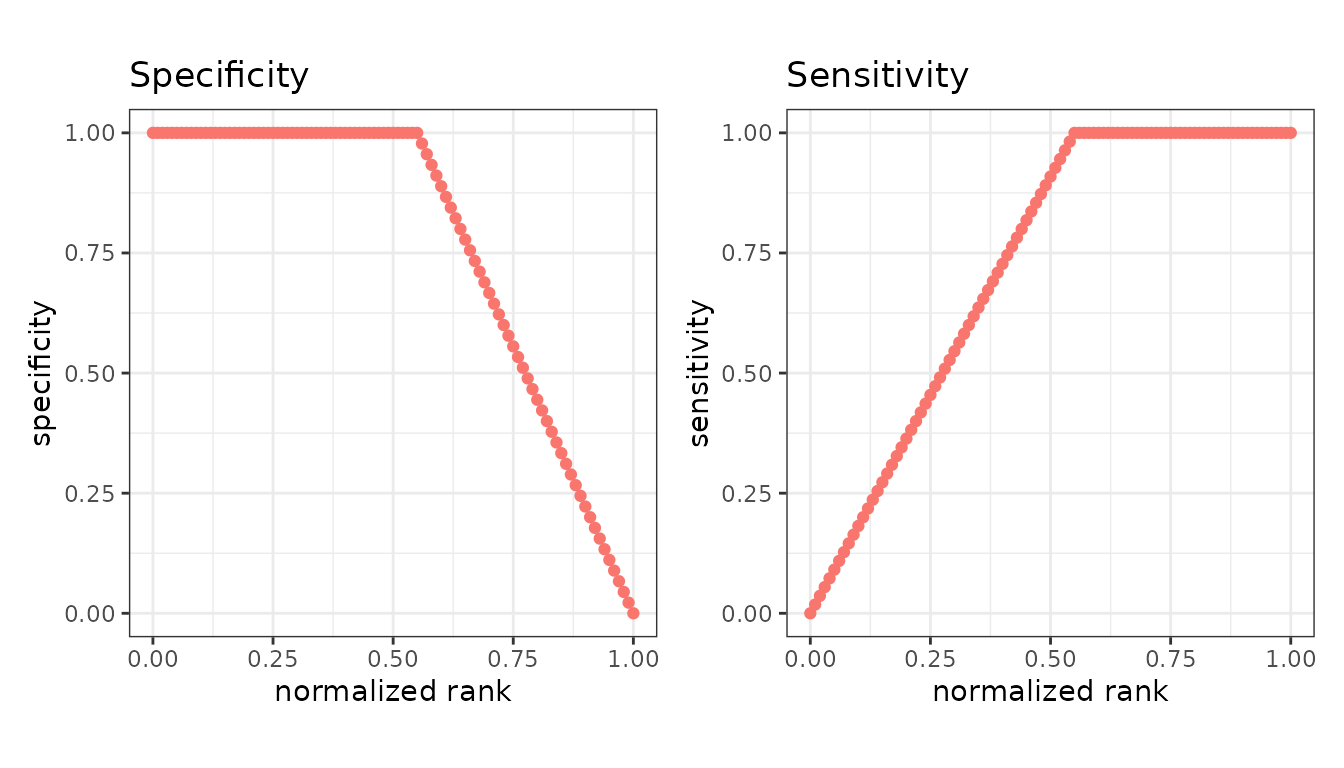

Sensitivity climbs across the positives instead of reaching 1 at once, which is the even spread rather than anything about the classifier.

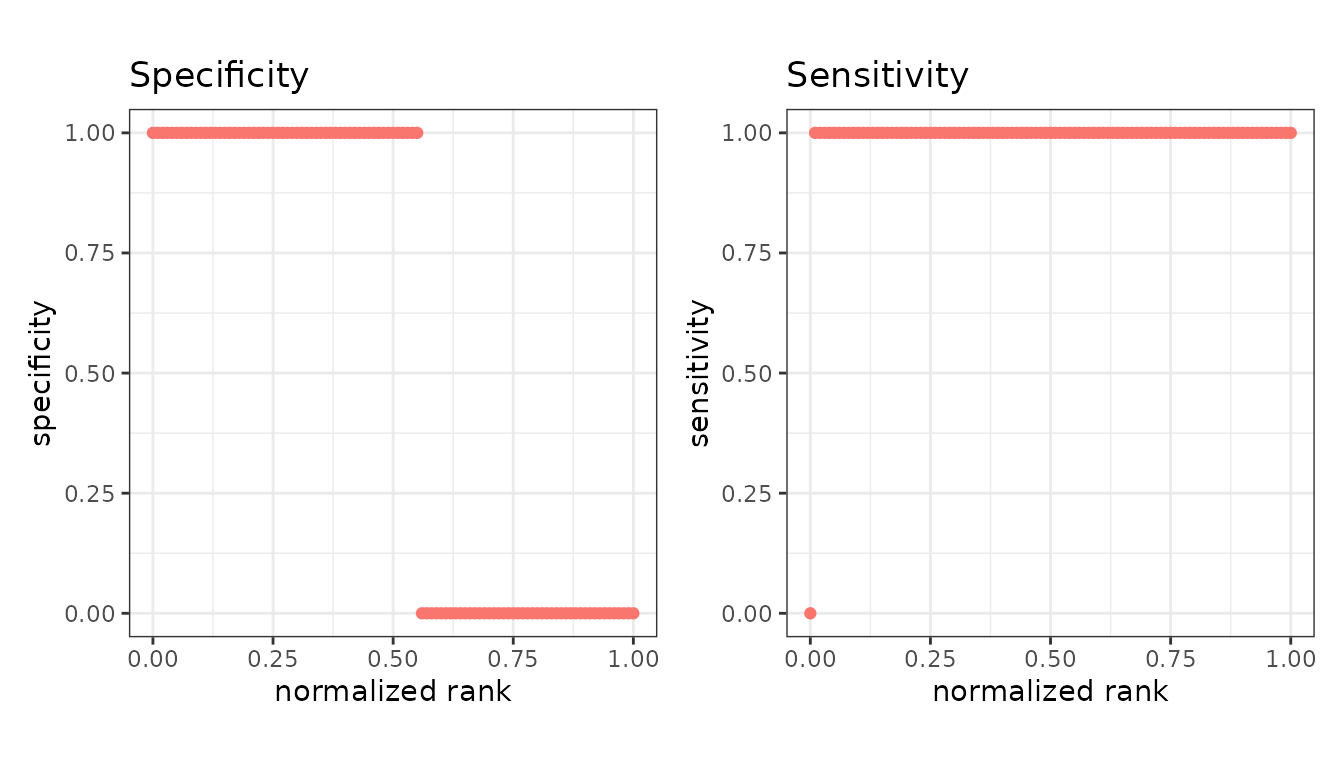

basic_ties = "hold" gives every cutoff in a run the counts it has once the whole run is taken, so tied instances share one value of every metric:

autoplot(
  evalmod(
    scores = perfect, labels = perfect, mode = "basic",
    basic_ties = "hold"
  ),
  c("specificity", "sensitivity")
)

Each metric is now a step function that changes only where the score does. Note that specificity still falls to 0 at the right edge: at x = 1 every instance is predicted positive, so there are no true negatives left whatever the classifier is worth.

The two settings agree whenever the scores are all distinct, and "split" is the default because it is what every published precrec result was computed with. basic_ties is read only by mode = "basic" - the curves keep their interpolation.

Scores and labels

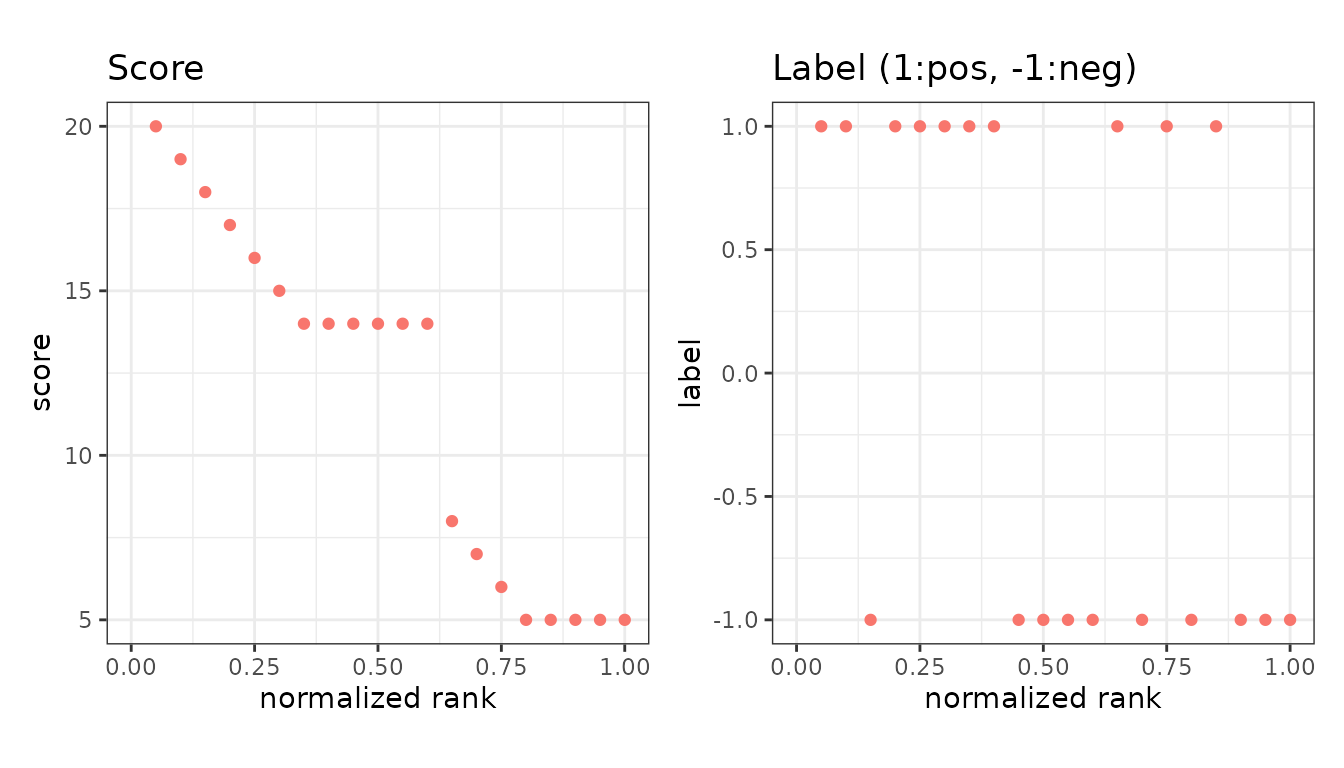

Two extra panels show the data behind the metrics rather than a metric: the score at each rank, and the observed label.

autoplot(points, c("score", "label"))

The label panel is the quickest way to see whether the positives really are concentrated at the top of the ranking.

Extra metrics

Anything beyond the default fourteen is requested with metrics = and then plotted the same way.

extra <- evalmod(scores = P10N10$scores, labels = P10N10$labels,
  mode = "basic", metrics = c("fpr", "lift")
)

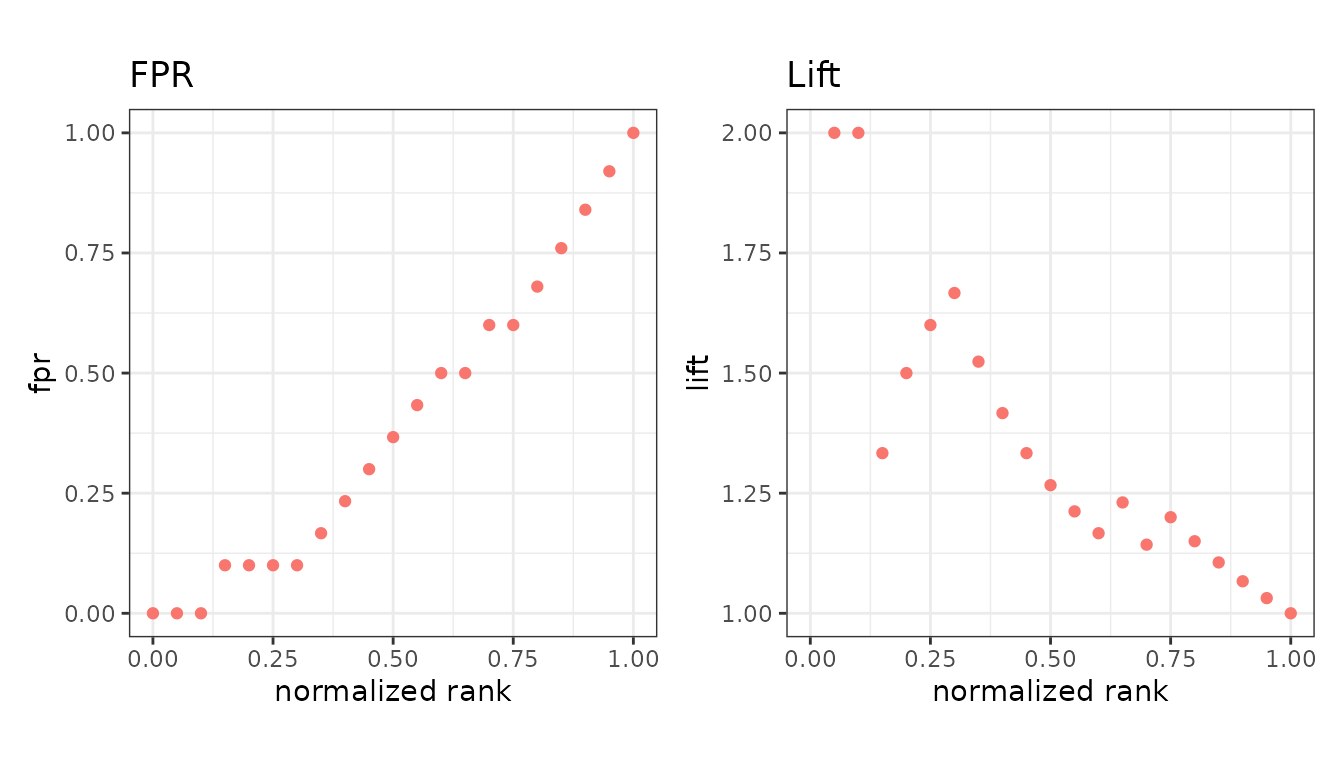

autoplot(extra, c("fpr", "lift"))

Asking to plot a metric that was not calculated is an error that names the argument to add. See the metrics overview.
