Confusion-matrix rates

Everything here is a ratio of two cells of the 2x2 table, evaluated at every cutoff.

	Predicted positive	Predicted negative
Actually positive	TP	FN
Actually negative	FP	TN

library(precrec)
library(ggplot2)

points <- evalmod(scores = P10N10$scores, labels = P10N10$labels,
  mode = "basic"
)

Overall

Measure	Formula	Range
`accuracy`	(TP + TN) / all	0 to 1
`error`	(FP + FN) / all	0 to 1

Accuracy is the measure to distrust first. On data with 1% positives, calling everything negative scores 0.99.

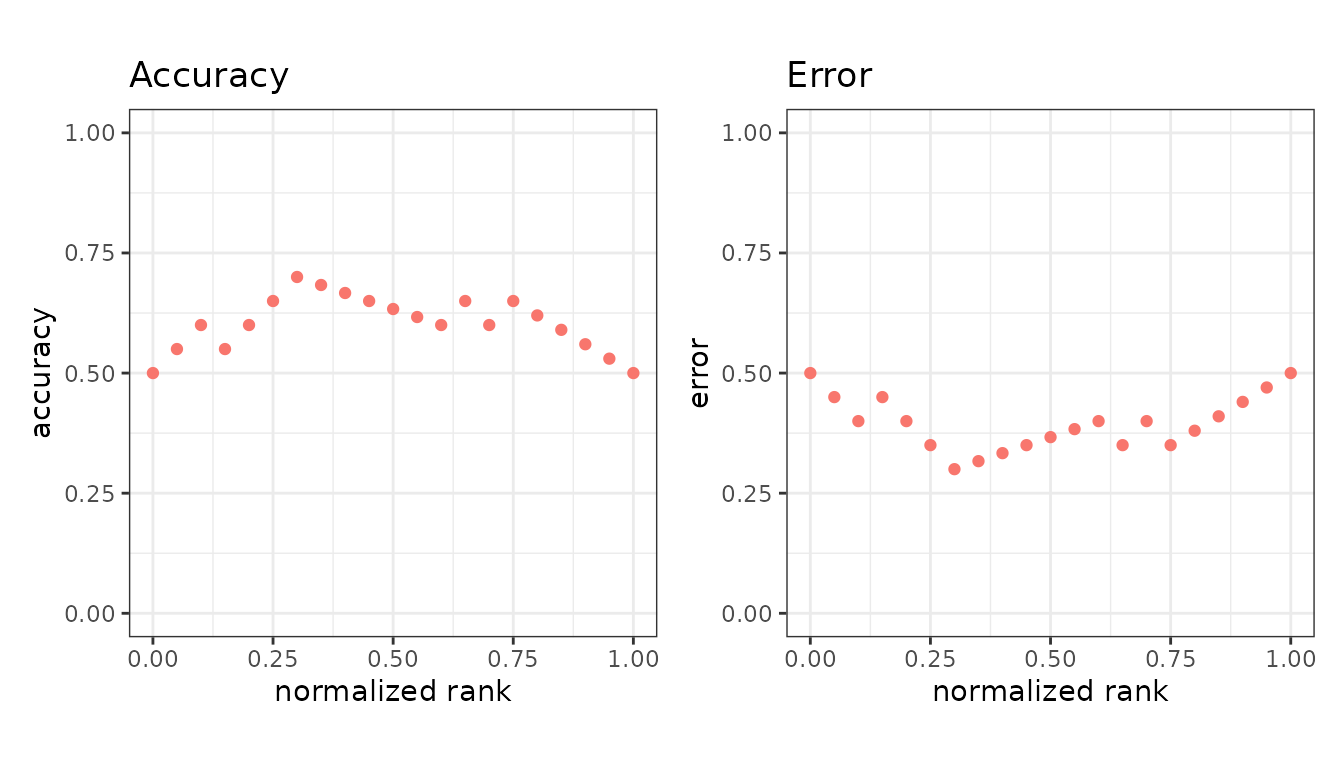

autoplot(points, c("accuracy", "error"))

Rates over the actual classes

These divide by a row of the table, so they do not move when the class balance changes.

Measure	Formula	Also known as
`sensitivity`	TP / (TP + FN)	recall, TPR, hit rate
`specificity`	TN / (TN + FP)	TNR, selectivity
`fpr`	FP / (FP + TN)	fall-out, 1 - specificity
`fnr`	FN / (TP + FN)	miss rate, 1 - sensitivity

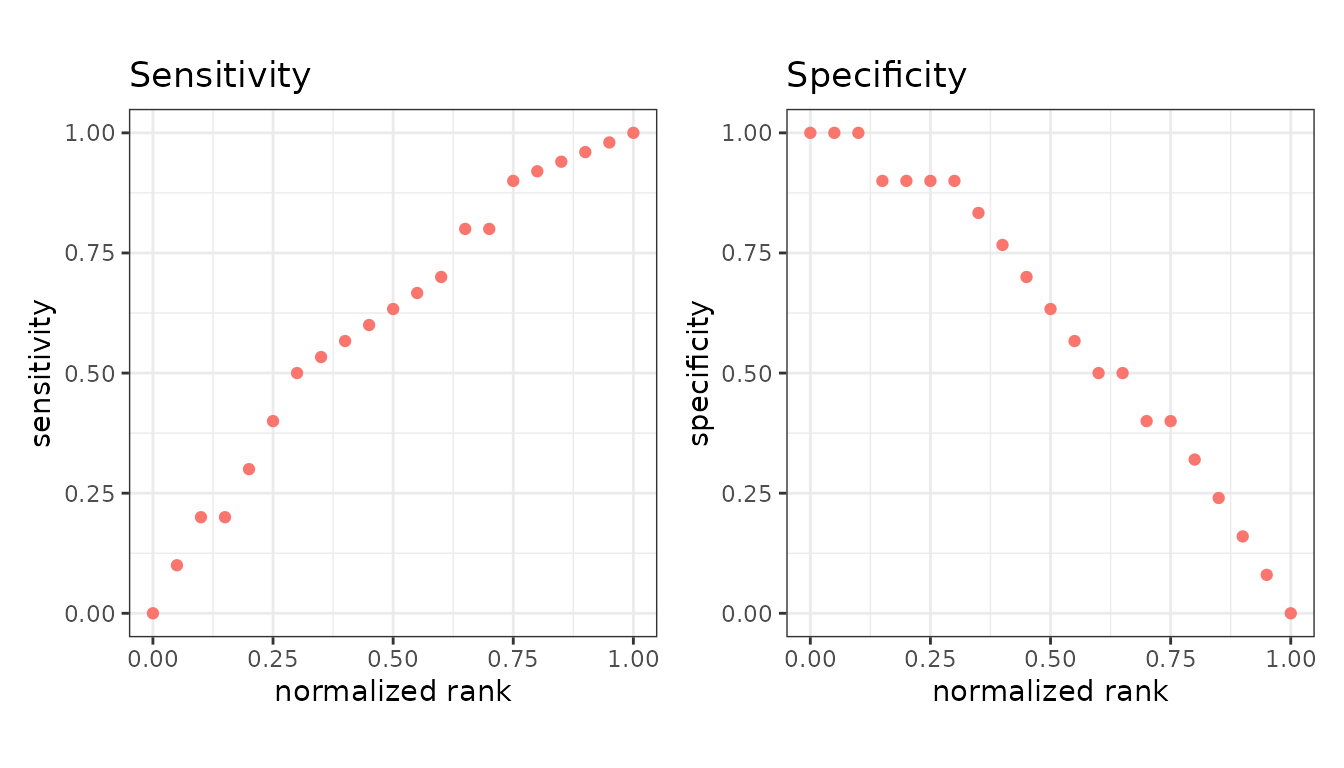

autoplot(points, c("sensitivity", "specificity"))

The ROC curve is sensitivity against fpr, which is why it is blind to class balance - both axes are row-wise rates.

Rates over the predicted classes

These divide by a column, so they do move with the class balance. That is what makes them informative on imbalanced data, and what makes them impossible to transfer between datasets.

Measure	Formula	Also known as
`precision`	TP / (TP + FP)	PPV
`npv`	TN / (TN + FN)	negative predictive value
`false_discovery_rate`	FP / (TP + FP)	1 - precision
`false_omission_rate`	FN / (TN + FN)	1 - NPV

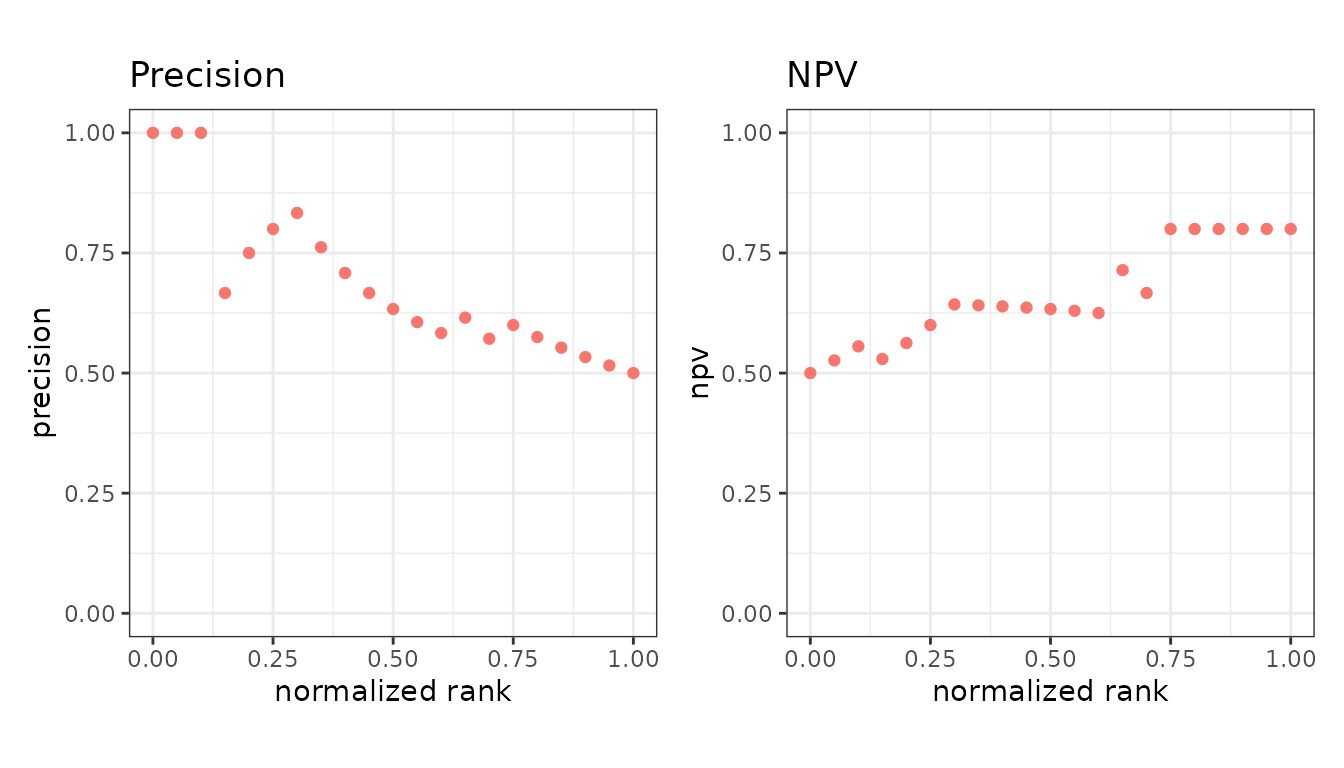

autoplot(points, c("precision", "npv"))

The precision-recall curve is precision against sensitivity - one column-wise rate against one row-wise rate. See balanced and imbalanced data.

How much gets flagged

Measure	Formula	Also known as
`predicted_positive_rate`	(TP + FP) / all	rate of positive predictions
`predicted_negative_rate`	(TN + FN) / all	rate of negative predictions

Useful when the cost of review is what constrains you: they say how much work a cutoff creates, regardless of whether the work is well spent.

ppr <- evalmod(scores = P10N10$scores, labels = P10N10$labels,
  mode = "basic", metrics = "predicted_positive_rate"
)

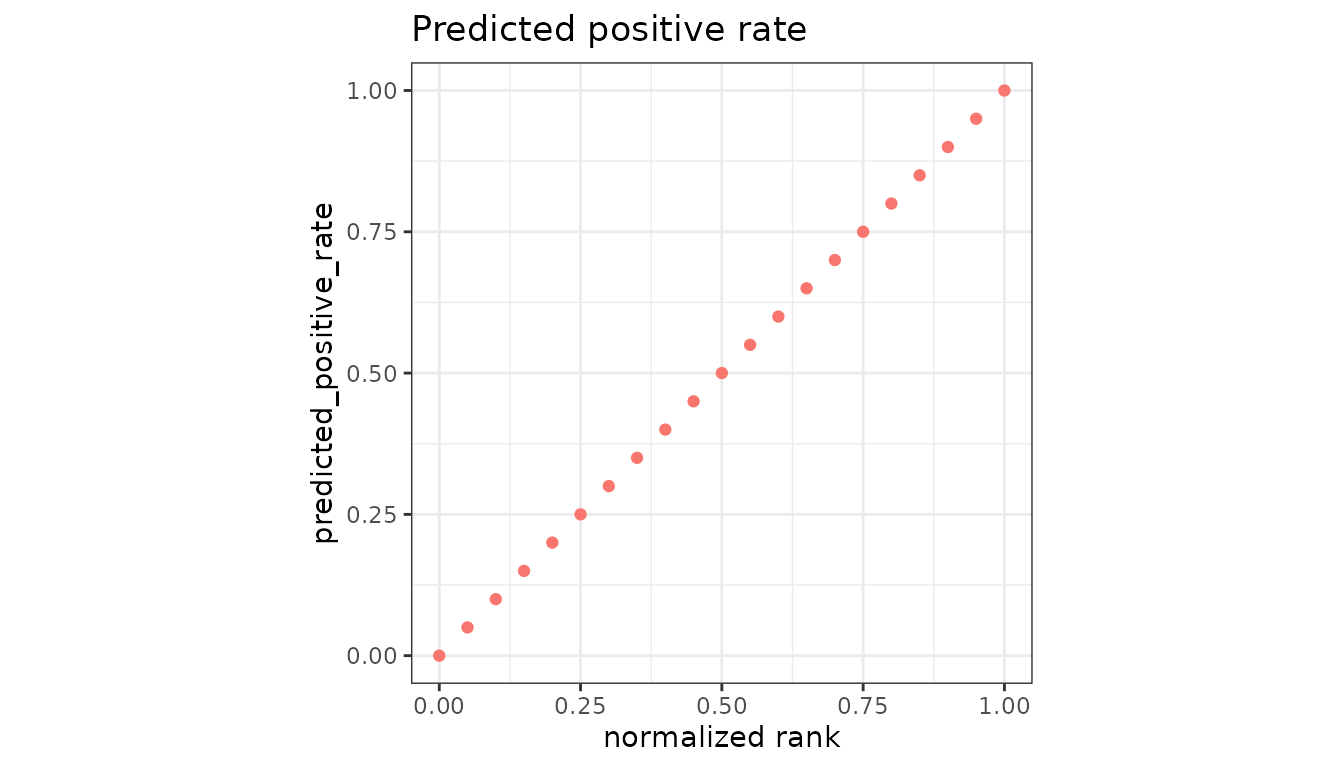

autoplot(ppr, "predicted_positive_rate")

Leaving out the true negatives

Measure	Formula	Also known as
`jaccard`	TP / (TP + FP + FN)	Jaccard index, critical success index, threat score

The Jaccard index is the 2x2 table with one corner deleted. Three of the four cells count toward it and the true negatives do not, which is the same omission precision and sensitivity make, and it is why the three move together on imbalanced data while accuracy does not.

That is easiest to see by padding a dataset with negatives the classifier gets right. Nothing about its handling of the positives has changed, and the Jaccard index does not move; accuracy climbs, because on the padded dataset most of what it is counting is the padding.

best_of <- function(scores, labels, metric) {
  points <- evalmod(scores = scores, labels = labels,
    mode = "basic", metrics = metric
  )
  df <- as.data.frame(points)
  max(df$y[df$type == metric], na.rm = TRUE)
}

# The shipped labels are 1 and -1, and the scores run from 5 to 20, so the
# padding is negatives the classifier scores below all of them
padded_scores <- c(P10N10$scores, rep(0, 200))
padded_labels <- c(P10N10$labels, rep(-1, 200))

knitr::kable(data.frame(
  dataset = c("P10N10", "P10N10 + 200 easy negatives"),
  jaccard = c(
    best_of(P10N10$scores, P10N10$labels, "jaccard"),
    best_of(padded_scores, padded_labels, "jaccard")
  ),
  accuracy = c(
    best_of(P10N10$scores, P10N10$labels, "accuracy"),
    best_of(padded_scores, padded_labels, "accuracy")
  )
))

dataset	jaccard	accuracy
P10N10	0.5625	0.7000000
P10N10 + 200 easy negatives	0.5625	0.9727273

Forecast verification calls the same quantity the critical success index or threat score, for the same reason: a rare event has so many true negatives that any measure counting them reports mostly the rarity.
